Product

RADTriage -TLD

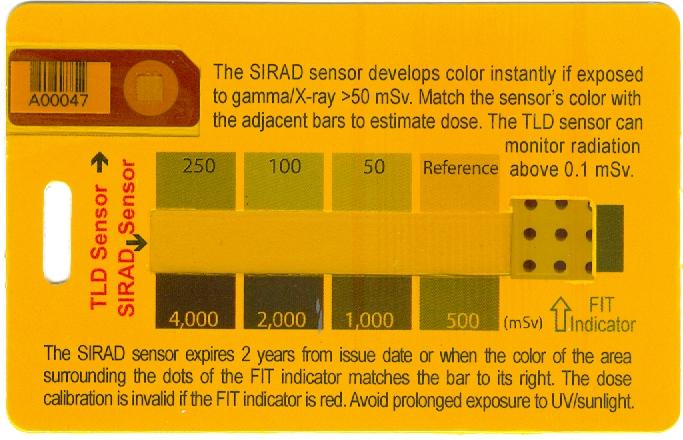

RADTriage-TLD (also called SIRAD-TLD) is a dual-sensor dosimeter designed to offer best of the two best technologies in radiation dosimetry. It has a color developing sensor of RADTriage for instantly, visually monitoring dose above 50 mSv and a TLD (ThermoLuminescenceDosimeter) chip for monitoring dose accurately above 0.1 mSv with TLD reader. RADTriage-TLD are custom made in large quantity only.

RADTriage-TLD offers the most desired properties of RADTriage (seeing dose above 50 mSv) and TLD (measuring any dose, e.g., from 0.1 mSv – 10,000 mSv accurately with a reader). RADTriage can monitor above 50 mSv visually and instantly and TLD (which can be pulled out from RADTriage-TLD badge for repeated use can monitor dose as low as 0.1 mSv with a TLD reader.

Both sensors (RADTriage/diacetylene and TLD/lithium fluoride chip) are tissue equivalent, light, rugged, can be carried 24/7, affordable and do not need a power source. The TLD-element of RADTriage-TLD can be reused many times and can be assigned to the user for a life time. RADTriage-TLD where a TLD chip is sealed, can be used for first responders and military where they can carry all the time but need to monitor dose only if a radiological incident occurs.

RADTriage of RADTriage-TLD is needed during the first months of radiological emergency to minimize panic and worry and triaging radiation exposure. After a radiological incident, governments want to measure dose of children, pregnant women and people living in affected area to measure the low dose on routine basis (e.g., every month or three months) and calm the public that they are not exposed to high dose. First responders and military want to measure any low dose and high dose > 50 mSv (instantly) all the time. RADTriage-TLD where a TLD chip is sealed is more suitable for military and first responders.

Awards and Recognitions

Related Field Tested And Proven Technology

Self-Indicating Instant Radiation Alert Dosimeter (RADTriage) Test Results Final Report

The first generation of RADTriage/SIRAD was field tested for eight months by US Department of Homeland security (DHS) with 800 fi...

Read more

Client Testimonials

DHS Report DHS Report
US Department of Homeland Security field tested RADTriage/SIRAD with 800 first responders from New Jersey, New York and Illinois in 2006. The study recommended use of RADTriage by military, first responders and public.
Memorandom for record Memorandom for record
In supporting development of RADTriage, CTTSO sought to make available in market place a rugged, reliable and affordable casualty radiation dosimeter for use by military, public safety, other critical response personnel and public.
RADTriage is RADfit in japan RADTriage is RADfit in japan
Out of 50,000 RADTriage we sold after the Fukushima Nuclear Power Plant incident, we received only three minor complains about the FIT indicator in the two years of use.” AucSale, Tokyo, Japan, a distributor.
Lindsay Rand Lindsay Rand
The results of this research indicate that RadTriage cards could be a good tool to provide for routine use by emergency first responders.
PrevenTech PrevenTech
8,000 RADTriage were used in the field by first responders in Israel for two years. We did not receive even a single complaint. Given the superb performance of RADTriage in the field, we are confident of another order from IMOD.” Dr. Guy Robin, a distributor in Israel.
